Magnetic Particles - Accessories

Tangential Field Meters

Instantly gives the true and effective average peak values of the magnetic field in different units. Range +/- 333 A/cm effective for sinusoidal field or (+/- 470 A/cm direct field).

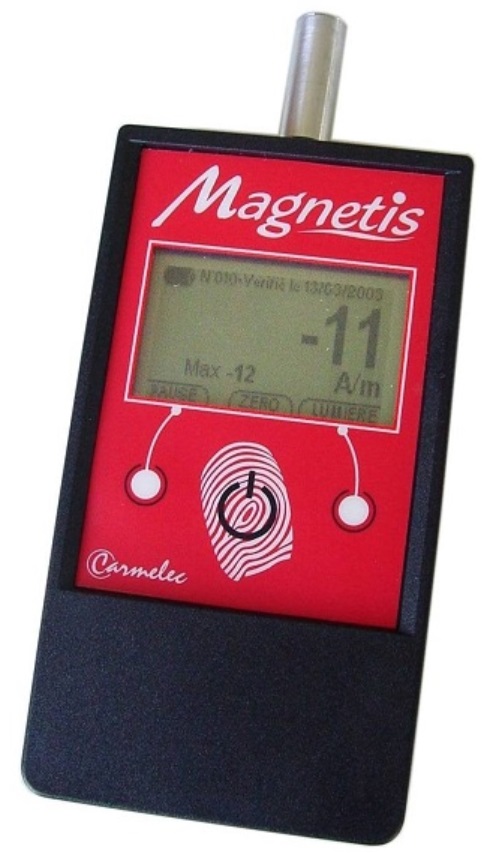

Residual Field Meters

Digital Meter remanent magnetic mesurer (for example after demagnetization). Unit A/m or mT (on request). Storing the maximum value. Range +/- 47 000 A/m, by steps of 10 A/m.

Residual Magnetic Field Indicator

Polarity indicator and remanence with needle calibrated in Gauss. Range + / - 20 Gauss.

Residual Magnetic Field Indicator

Magnetic field indicators for confirming the level of component demagnetisation after inspection.
Full range +/- 20 Gauss
Full range +/- 10 Gauss

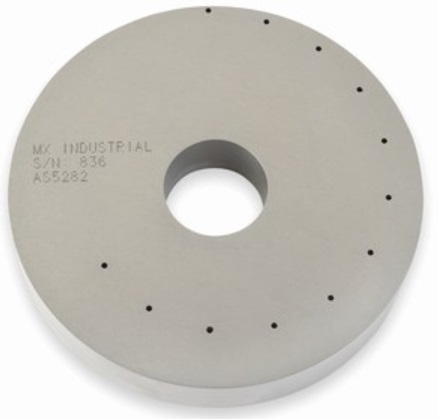

Ketos test Ring/AS 5282 Ring

Used to check overall performance of the magnetic particle examination system.

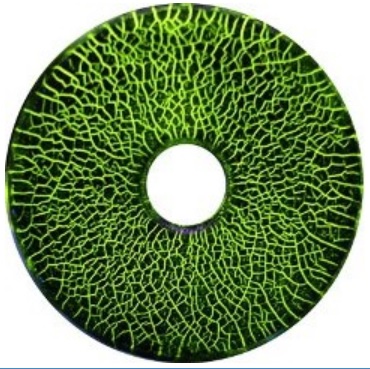

Block MTU

Circular in form, it is used to test the effectiveness of new or in use magnetic inks.

Snecma Disk

In a form of a disk with holes. It is used to check the efficiency of the cross-ways magnetization done by a current generator (SNECMA DMC 0070).

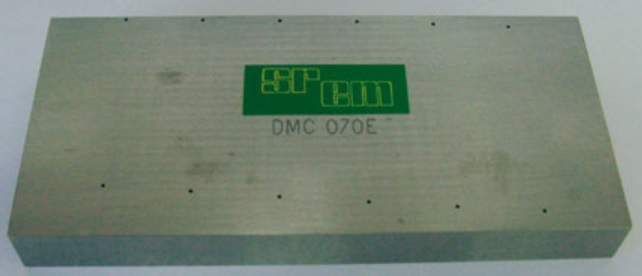

Snecma Test Block

Used to check the polarity of the coils of a MPI bench or the effectiveness of the longitudinal magnetization.

TP1/5 - Test Piece

Range of test pieces for validation of MPI systems. RRP58004; BS6072

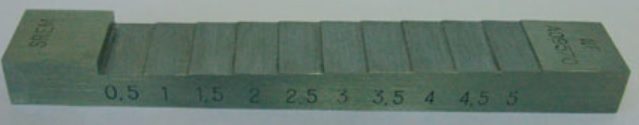

Test Block B

Used to check check the performance of the transverse magnetization circuit on MPI bench.

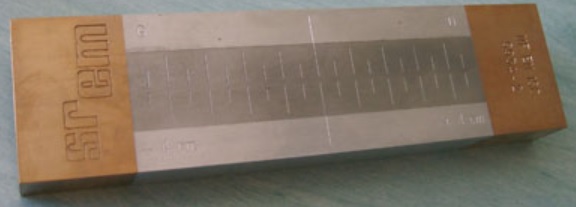

Test Block C, EN ISO 9934 TYPE 2

Used to test the effectiveness of new, or in use, magnetic inks.

AFNOR nº1 Test Piece

Used to check the magnetising conditions as well to check the satisfactory whole performance of the magnetizing equipment.

AFNOR nº2 Test Piece

Used to check the magnetising conditions as well to check the satisfactory whole performance of the magnetizing equipment.

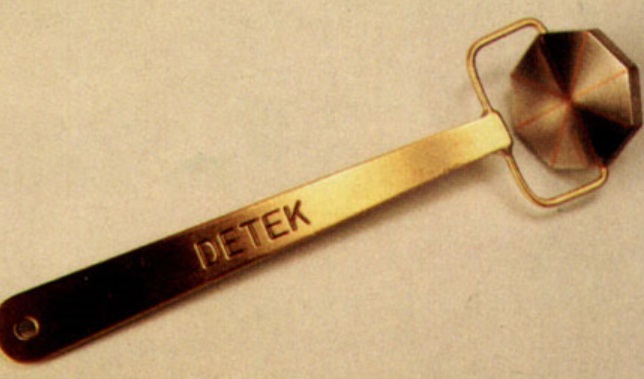

ASME Indicator

Used for local control of magnetization of a part.
Can check if all the conditions are satisfactory for a good discontinuity of detection.

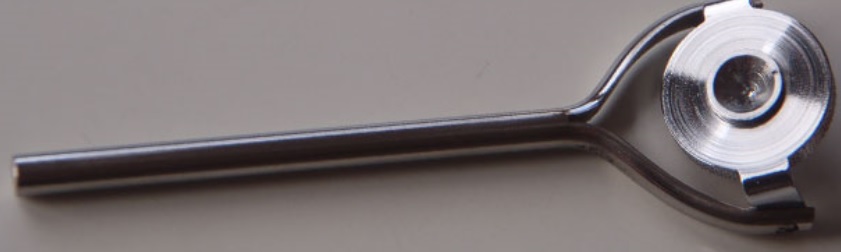

BERTHOLD Penetrometer

Used for local control of magnetization of a part. Can check if all the conditions are satisfactory for a good discontinuity of detection.

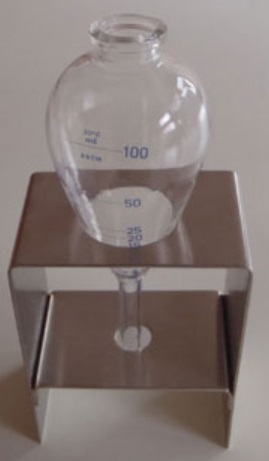

CENTRIFUGE Tube, ASTM D 1966r

Used to control the concentration of magnetic particles in wet bath.

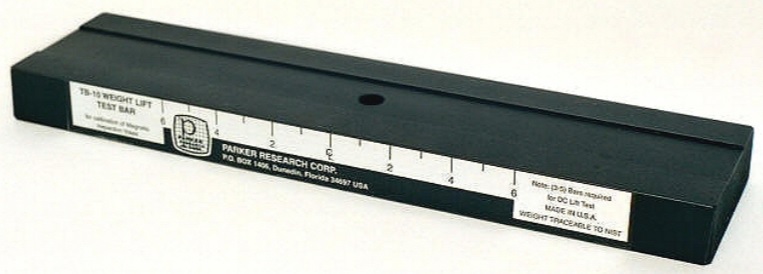

Magnetic Weight Lift Test Bar

Used to check the lifting force of yokes.
